Video Control The Switchers Multiviewer output can be distributed to multiple users. This output is a copy of the camera section of the production monitor wall, displayed on a standard flat panel computer monitor. Precision Video shading with Panasonic 17 inch Hi-Res HD video monitor along with Leader LV 5330. Aux Panel control for camera switching, Reference Audio Monitoring with Techtronix audio scope.plus AJA FS 2 FramSync

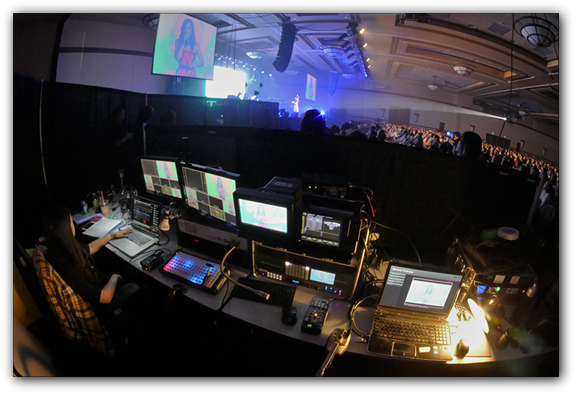

Control Room Section The Panasonic AV-HS450N is a 16+ Input HD/SD Switcher w/ Dual-Screen Multiviewer Display. The switcher comes equipped with (16) HD/SD-SDI inputs and (4) HD/SD-SDI outputs, plus (4) additional outputs with down conversion along with (2) DVI-D outputs. The switcher's sophisticated full 10-bit high definition processor produces unmatched image quality. Built-in dual-display multi-viewer lets you display up to (20) different images on two monitors; up to (16) on one screen.DVE Effects like page turns with highlight dual picture in picture (3) keyers one up two downstream add to this the BMD 40x40 HD/SD SDI Router giving you added distribution power.

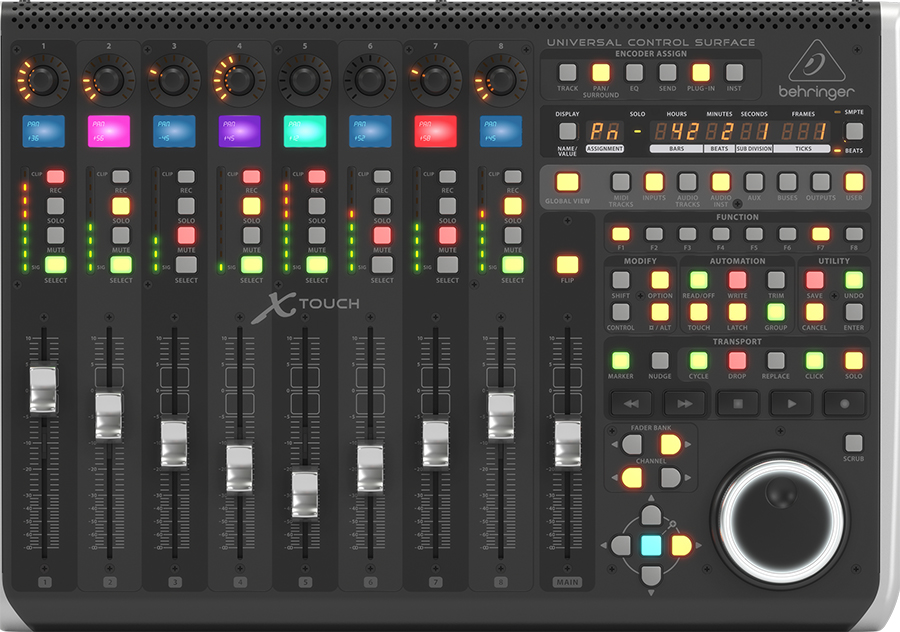

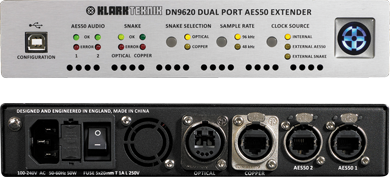

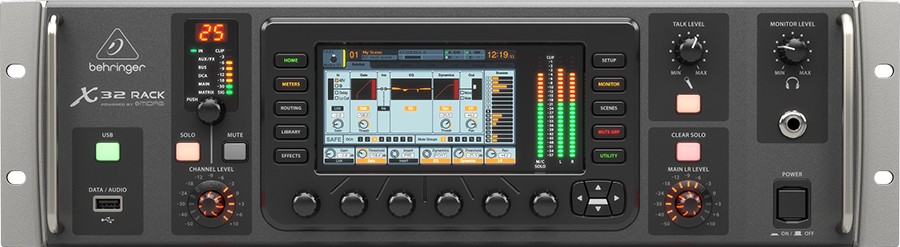

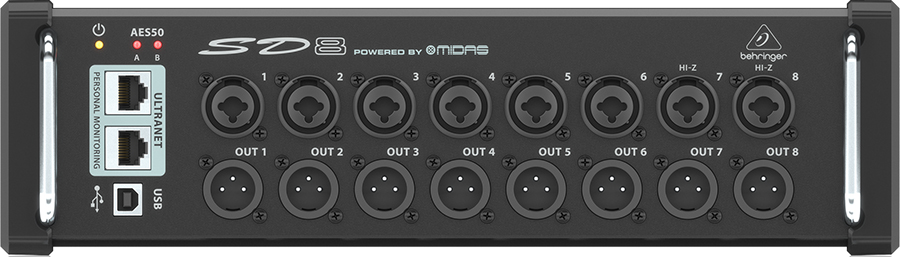

Audio 40-Input, 25-Bus Digital Mixing Console with 32 Programmable MIDAS Preamps, 25 Motorized Faders, Channel LCD's, 32-Channel Audio Interface with Macintosh direct record.16 XLR outputs plus 6 additional line in/outputs The DL16 digital stage box16 fully-programmable, remotely controllable high-end mic preamps and 8 analog, balanced XLR returns all extended with fiber extendor DS 9620

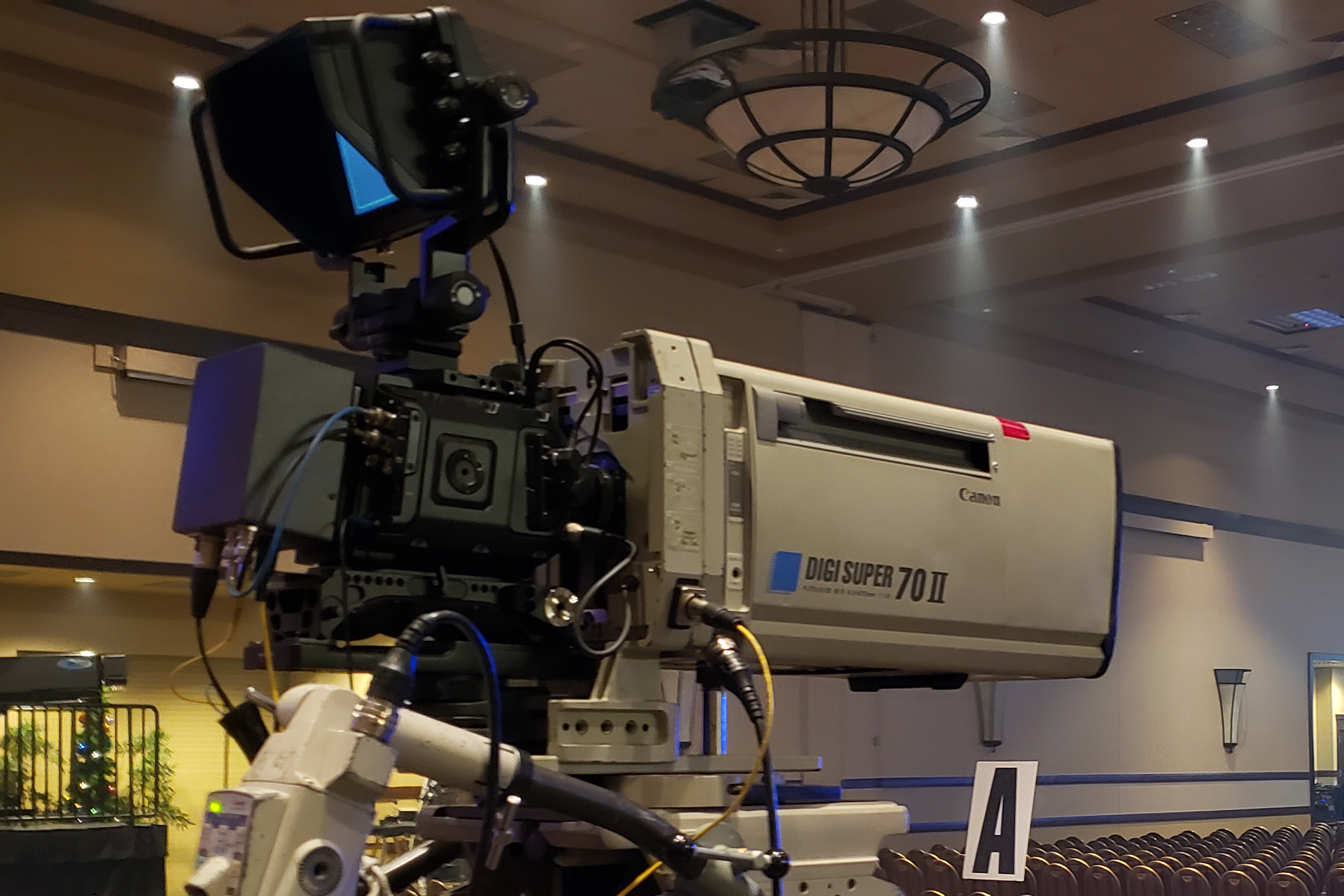

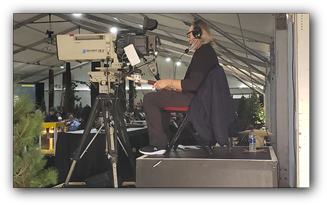

Cameras Utilizing the Panasonic HPX 500 P2 HD 2/3 CCD Digital cameras with full fiber CCU control over thousands of feet, offering the Canon 70x Mark II lens for incredible tight shots combined this with the Panasonic AW-HE120 Robo Cameras providing outstanding image quality and smooth pan/tilt/zoom operation.

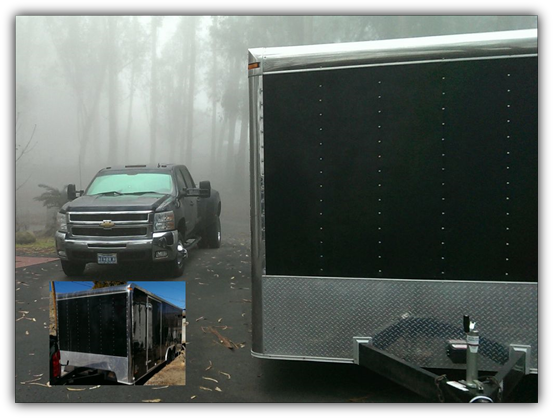

Transportation Dully 1 Ton Truck with 20 foot trailer
